High Quality PETG 3D Printed Lens Adapter

This is a DL Mount lens Adapter . This works along with the standard counter weight kit or XL counter weight kit to adapt and use the following lenses on the DJI Inspire 3 (lenses sold separately)

What’s Included

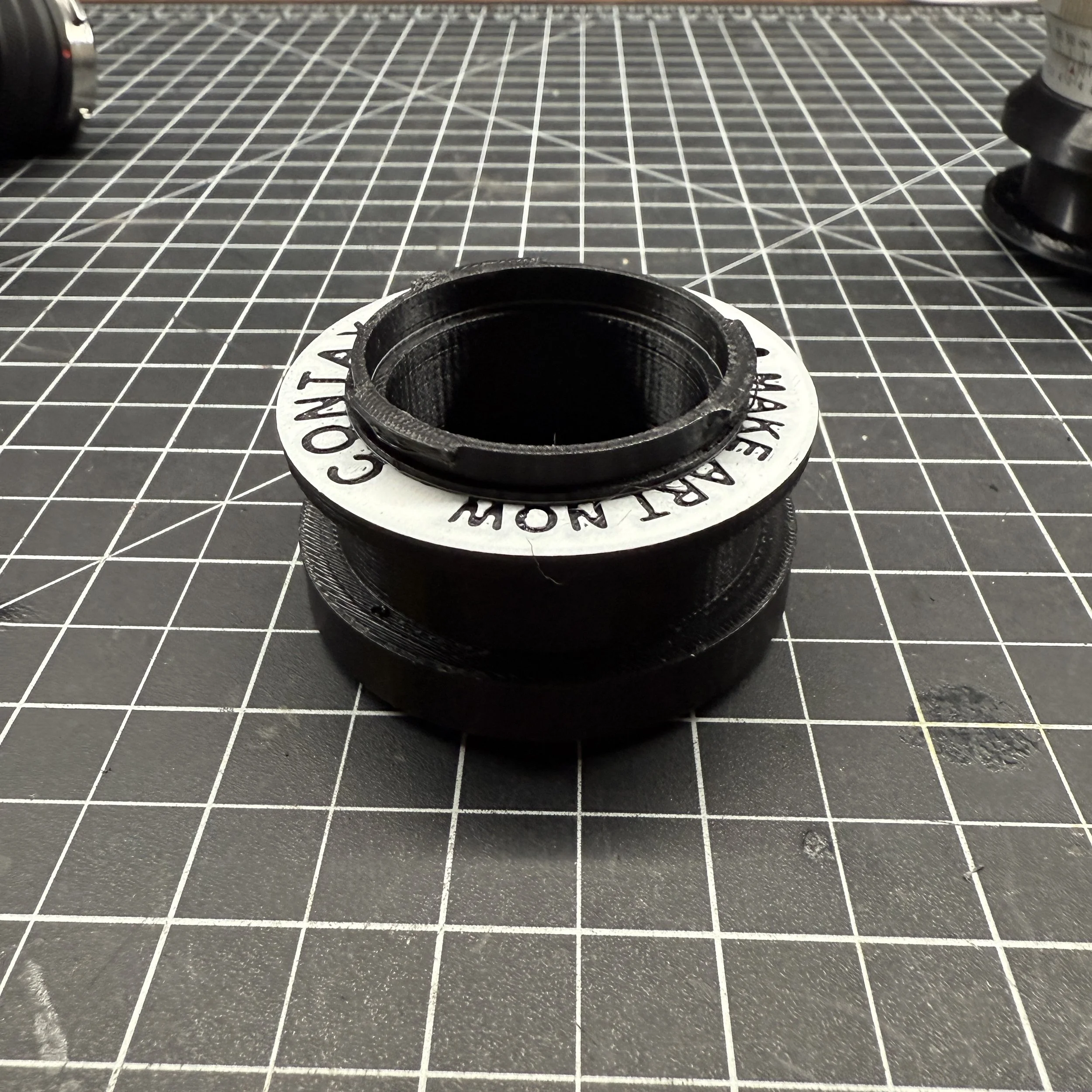

(1) 3d Printed Adapter - Contax C/Y to DL

*These are specifically designed for i2 and i3, and NOT intended for R4D and may not fit correctly or fall off under rigorous use on the R4D.

Lenses this Adapts

( These are within weight and size limits for flights on i3)

• Carl Zeiss Planar T 50mm f/1.4

• Carl Zeiss Distagon T 28mm f/2.8

• Carl Zeiss Distagon T 35mm f/2.8

• Carl Zeiss Sonnar T 85mm f/2.8

• Carl Zeiss Planar T 85mm f/1.4

• Carl Zeiss Distagon T 25mm f/2.8

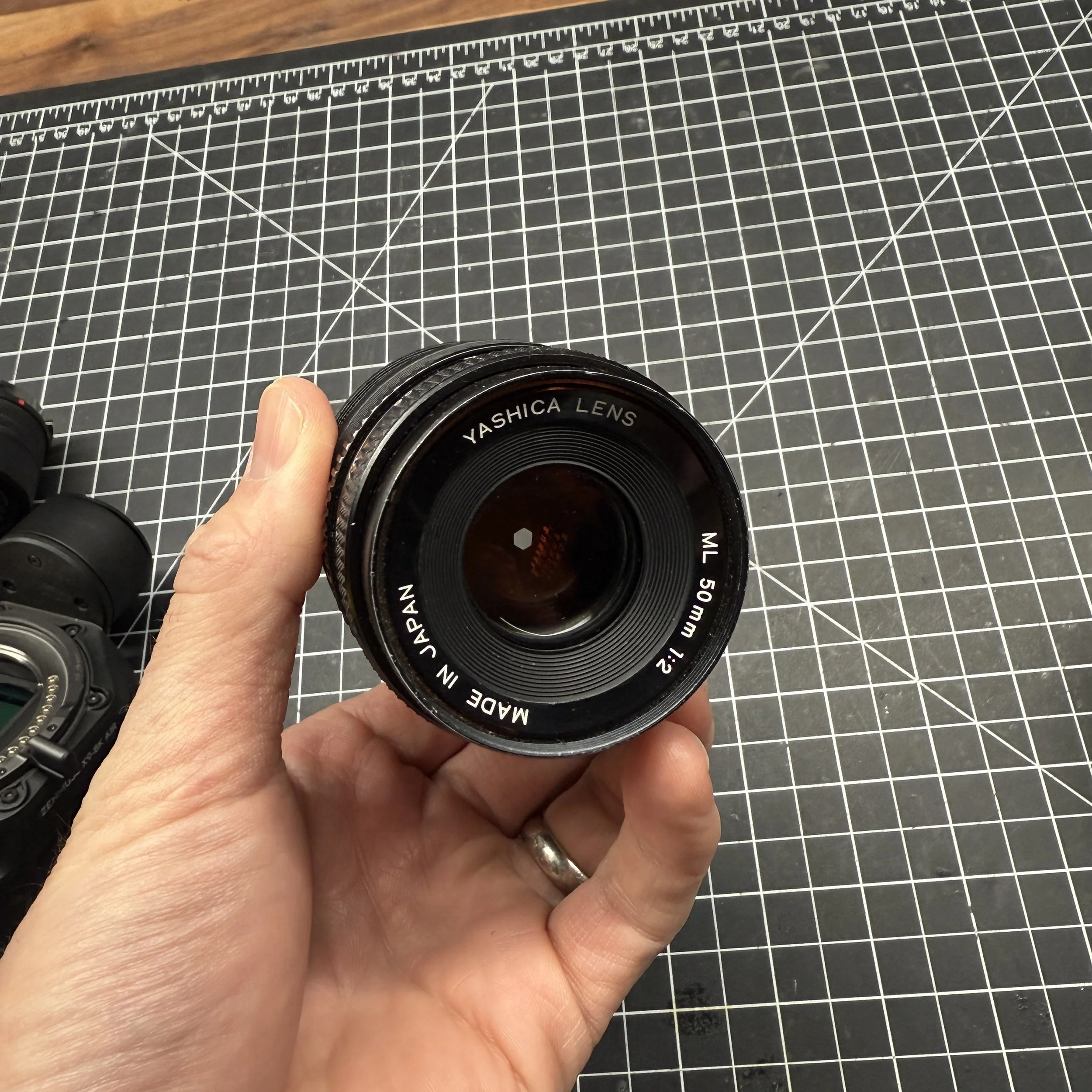

• Yashica ML 50mm f/1.7

• Yashica ML 35mm f/2.8

• There are more, that can be flown, as long as lens weight is not heavier than 500g and barrel length is not longer than 114mm

ADD ON ITEMS

REAR ND FILTER - FireCrest $75

Firecrest ND fits any of the adapters above, now you can fly any lens with rear mount ND. These are color nuetral and are trusted with cinematographers everywhere.

Not only does this make ND possible for every lens, (saves a ton of money), but it prevents ghosting from front mount ND, and it also adds more stability to flight by adding more weight towards the center mass. Sometimes adding weight to front of lens can make lenses much harder to balance and fly vibration free, using a Rear ND is our way around this and works very well.

Fire Crest ND 32, ND64, ND128, ND256

$75 each (these pop in and out easily and fit all the DL adapters)

How this works

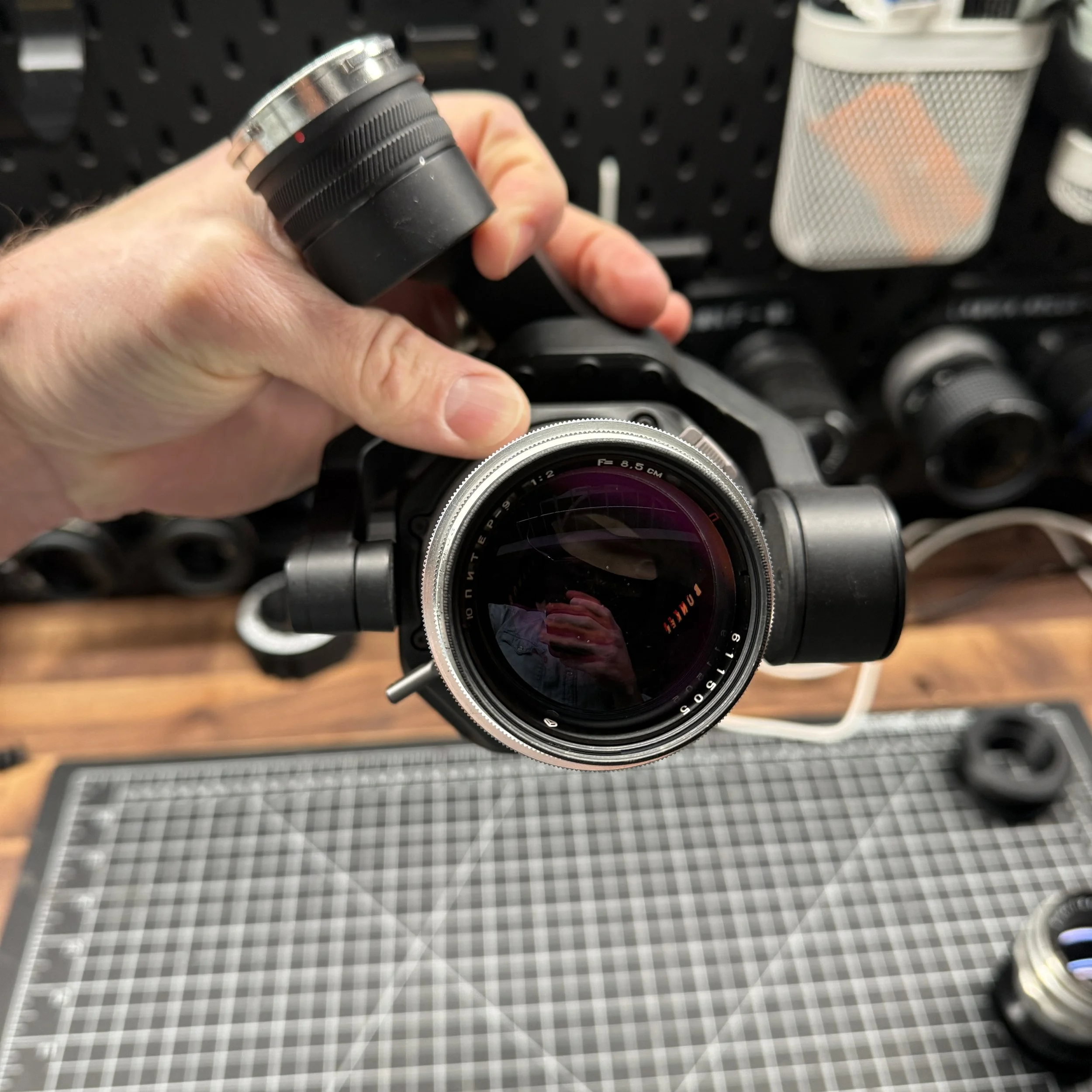

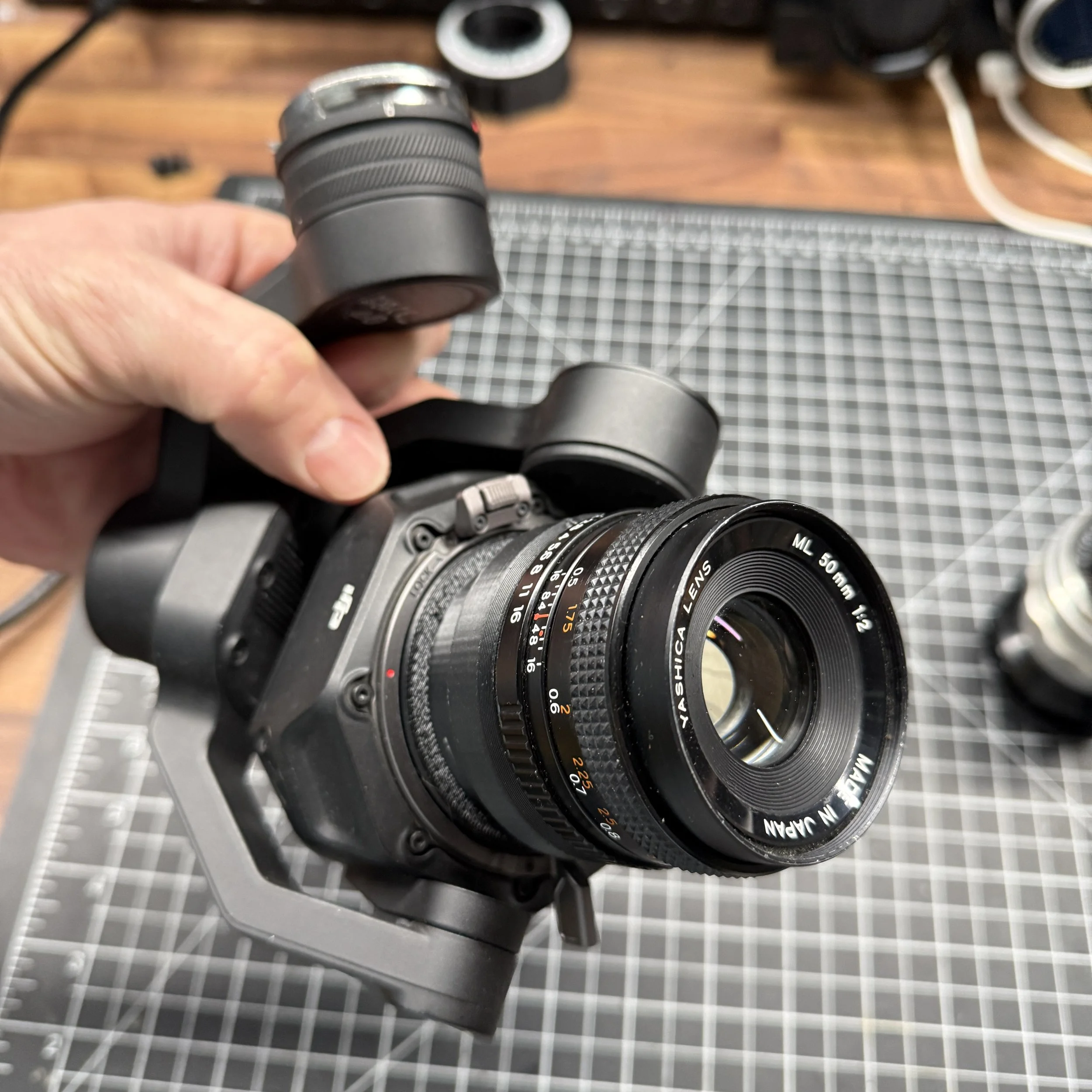

Step 1. Install lens on Inspire 3 along with the Counter Weight kit and appropriate weights.

Step 2. Set focus to infinity on the ground.

Step 3. Lock focus with a small piece of gaffe tape on the lens. You will not get Autofocus with these lenses.

Step 4. Make sure gimbal lens lock has locked in lens correctly.

Counter weight kit needed to fly

• You will need the Standard or XL Counter Weight Kit

• amounts of weights vary with different lenses.

• Balls of steel

DISCLAIMER - YOU FLY AT YOUR OWN RISK

The DJI inspire 3 is designed to fly compact lenses that are 169g, and flying heavier and bigger lenses will change flight and gimbal characteristics. By purchasing this adapter you accept the risk of personal injury, death and or destruction of property due to the changes to the flight characteristics. This sale makes no guarantee that the lenses the adapter is intended for will work with full functionality, mobility, and aerodynamics. Be smart, fly slow, make a test flight first, YOU FLY AT YOUR OWN RISK.
