High Quality PETG 3D Printed Lens Adapter

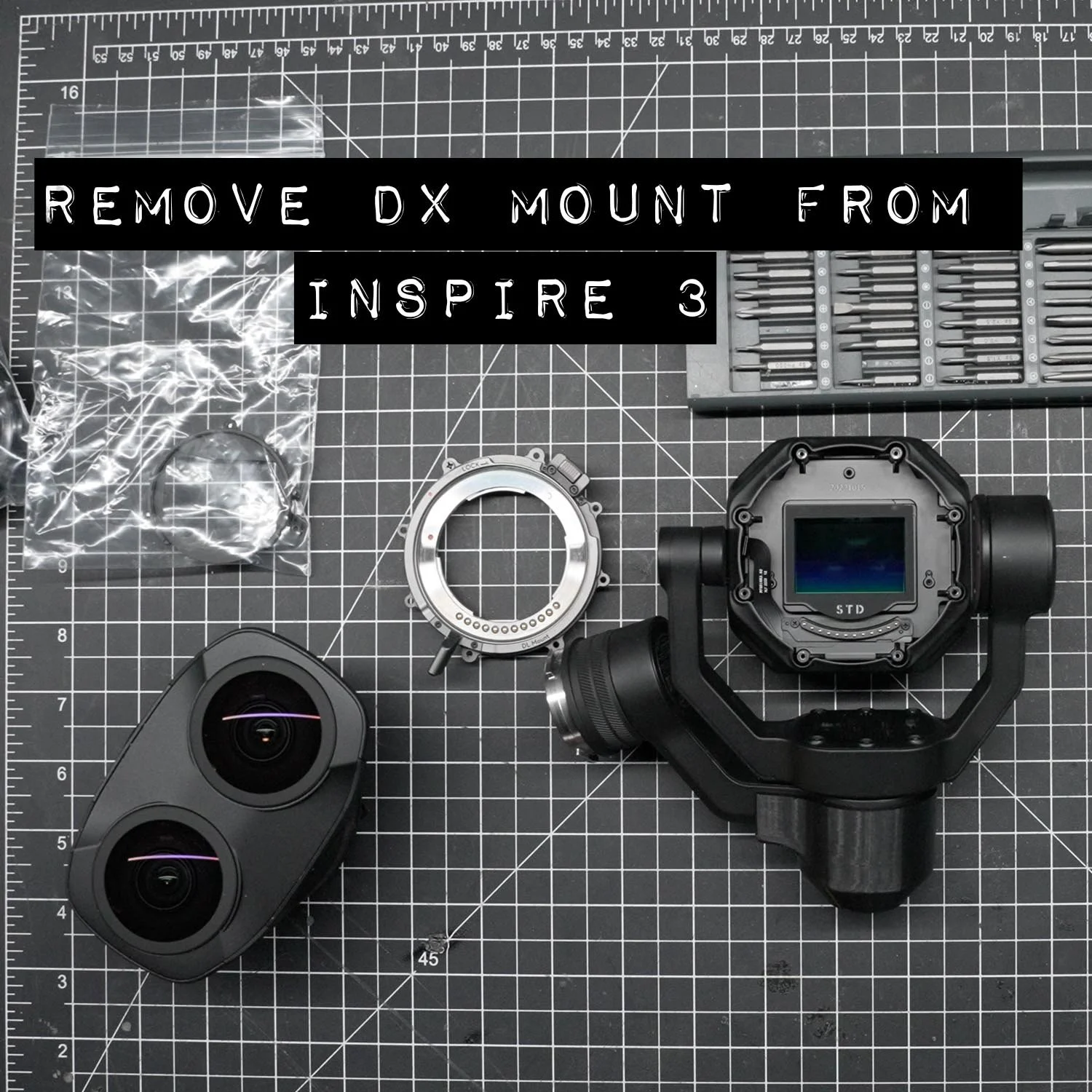

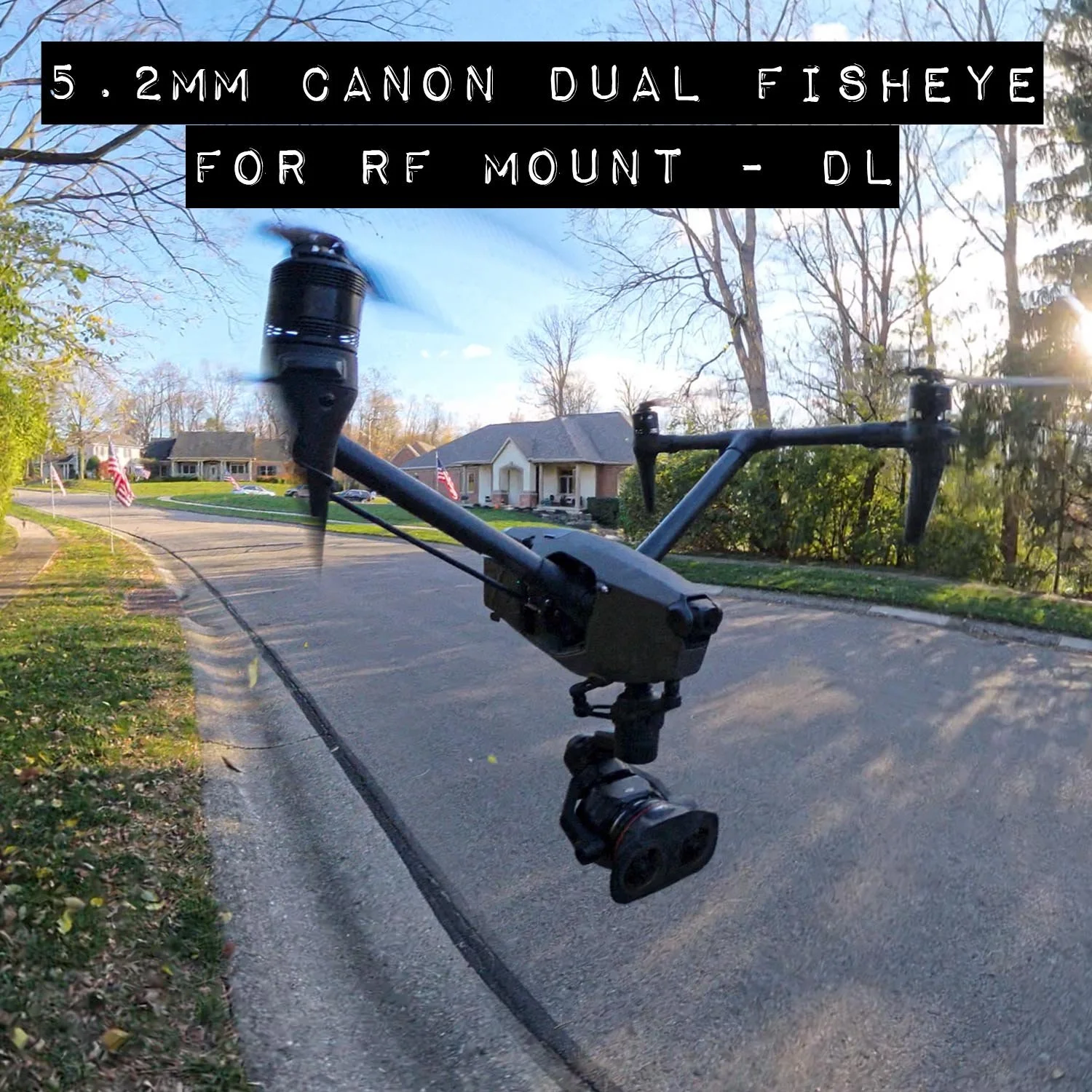

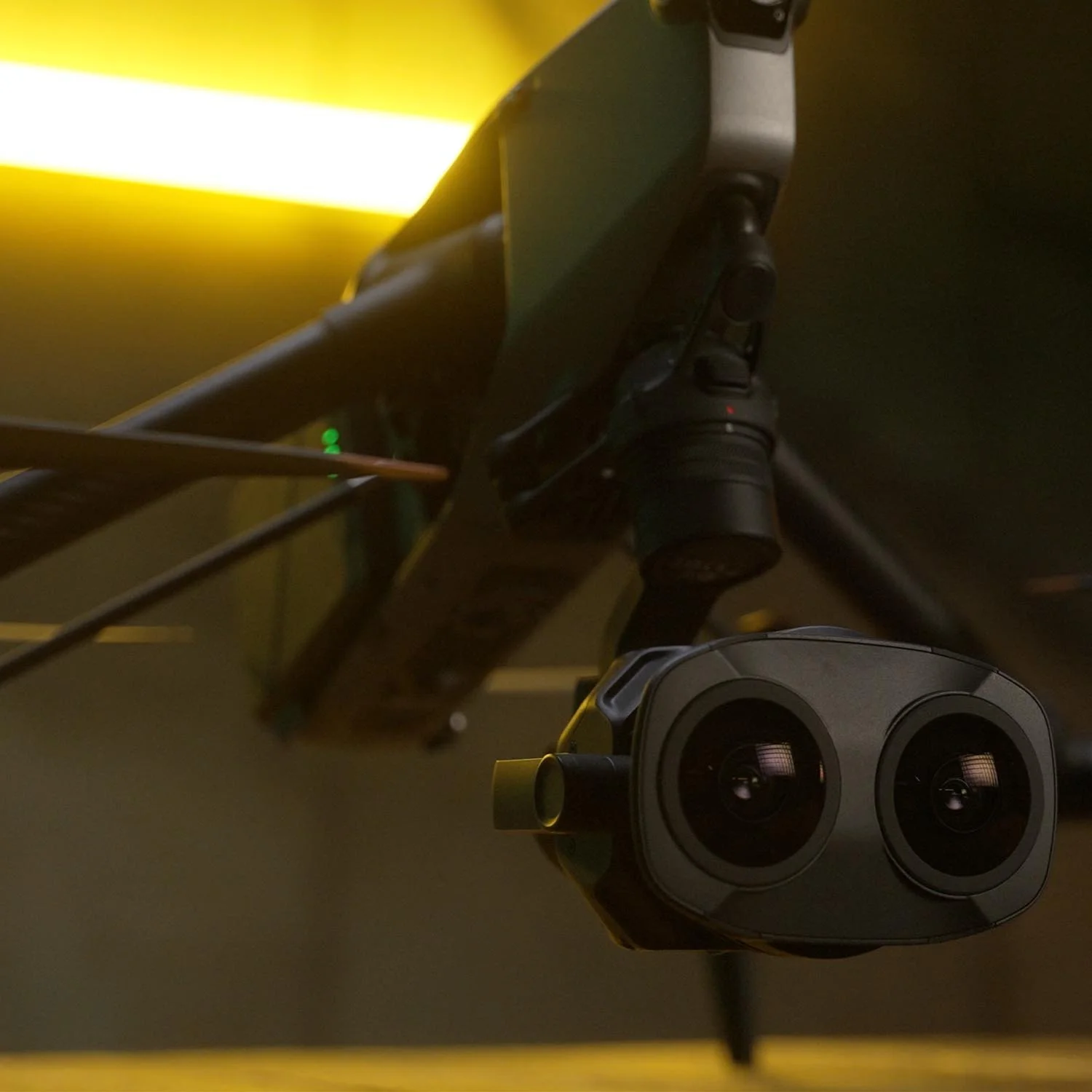

This is a DJI DL Mount lens bayonet that screws into the back of the Canon dual Fisheye 5.2mm lens, and also screws into a stripped down version of the Inspire 3. This takes 1-2 hours for first time install, and is advised to leave on lens for faster install times later. Once mounted to the lens, the install time on the Inspire 3, is reduced to 20 minutes. Therefore, it is suggested that this kit be used on back up drones, as the sheer install and un install time is not conducive for a fast moving set.

If needing a fast option, you can rent my Inspire 3 gimbal with lens attached here on sharegrid ( can ship as long as the rental is in USA)

• This kit is 100% reversible, but it takes just as much work to reverse as it does to install.

What’s Included

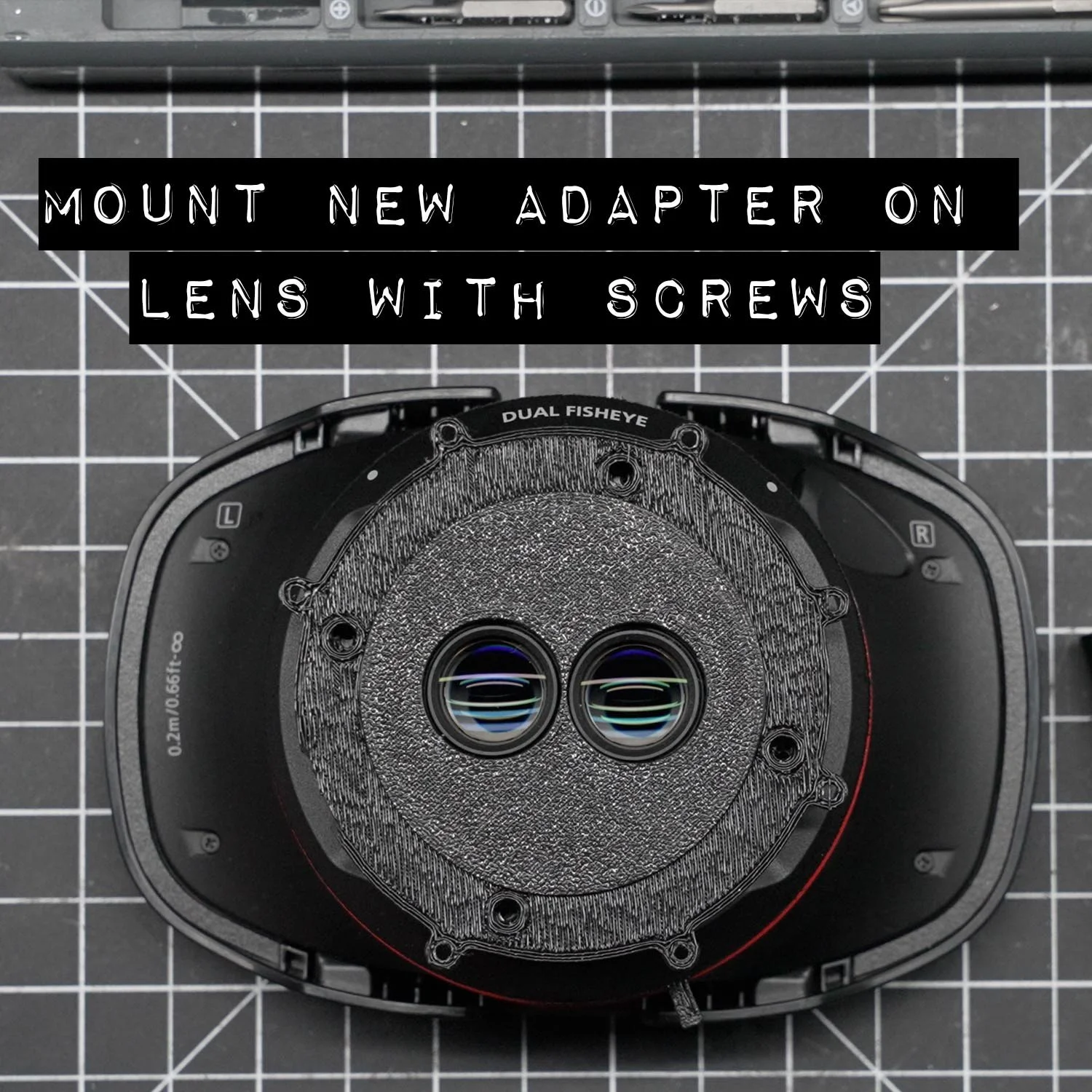

(1) 3d printed - Replacement bayonet for Canon RF mount 5.2mm dual fisheye FF lens. (does not include lens)

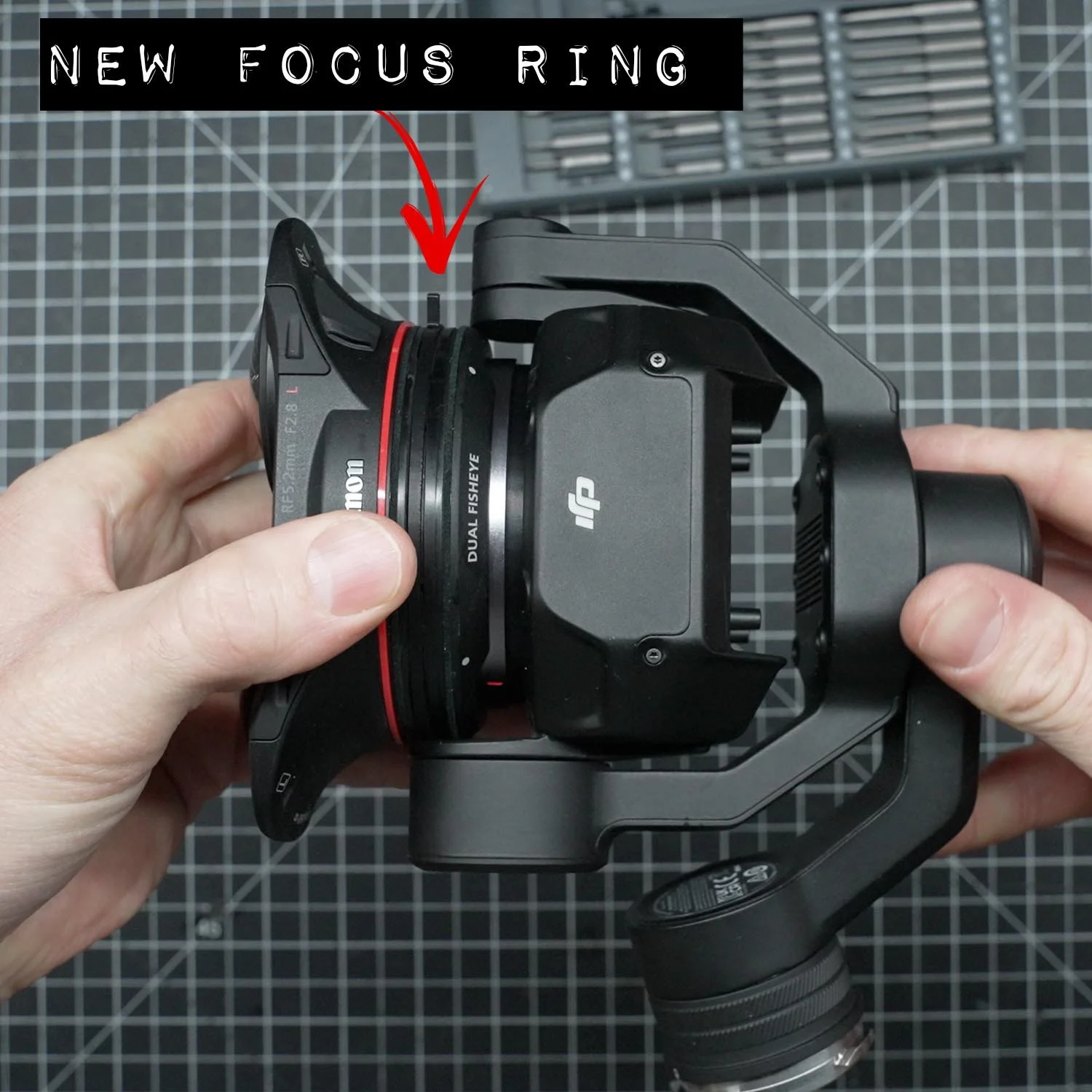

(1) 3d printed - Replacement Focus Gear for 5.2mm RF lens. (In order to fit, you must remove lens housing and old focus ring and replace with this slimmer one)

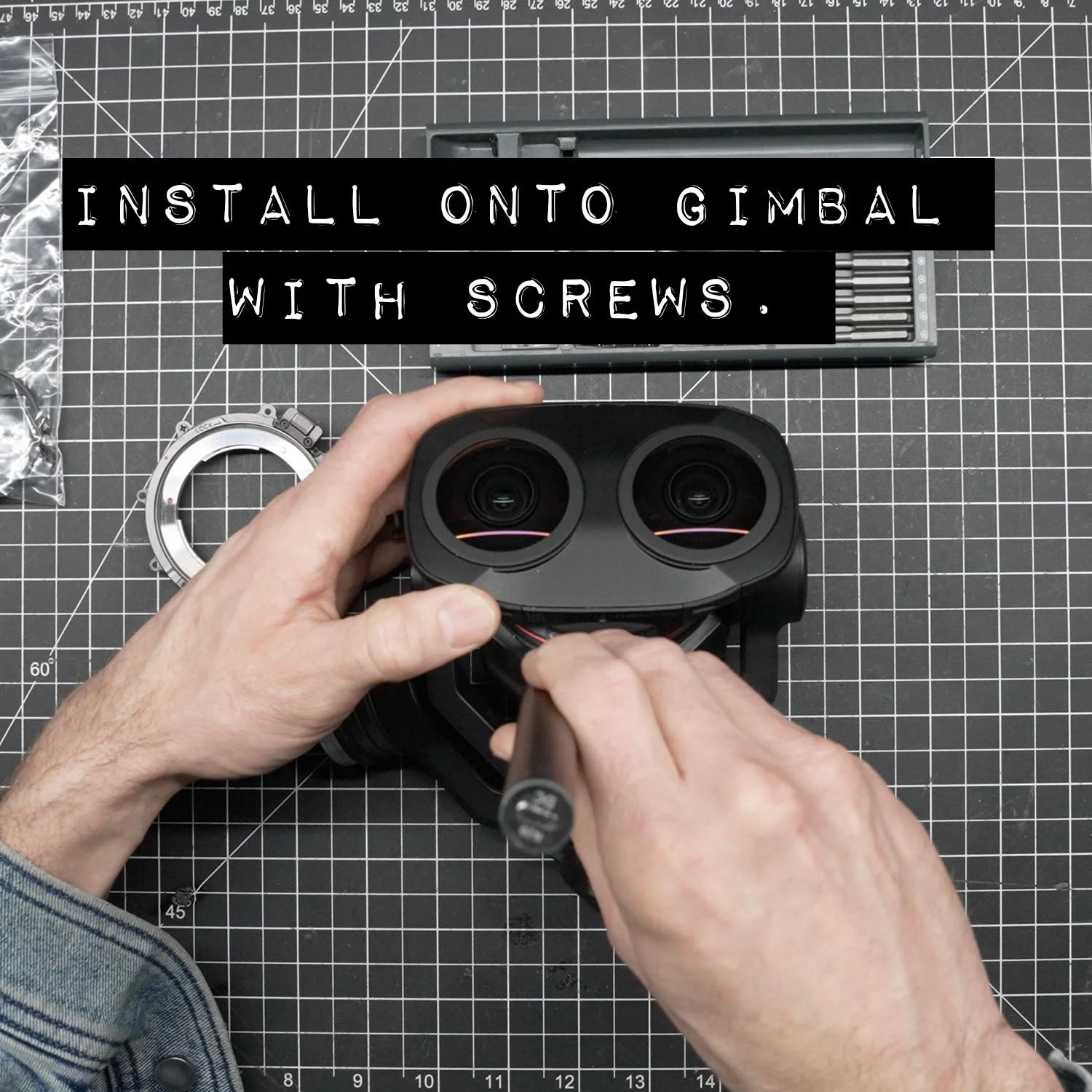

(4) screws to mount to drone

• Only works with L mount version.

Necessary tools and accessories

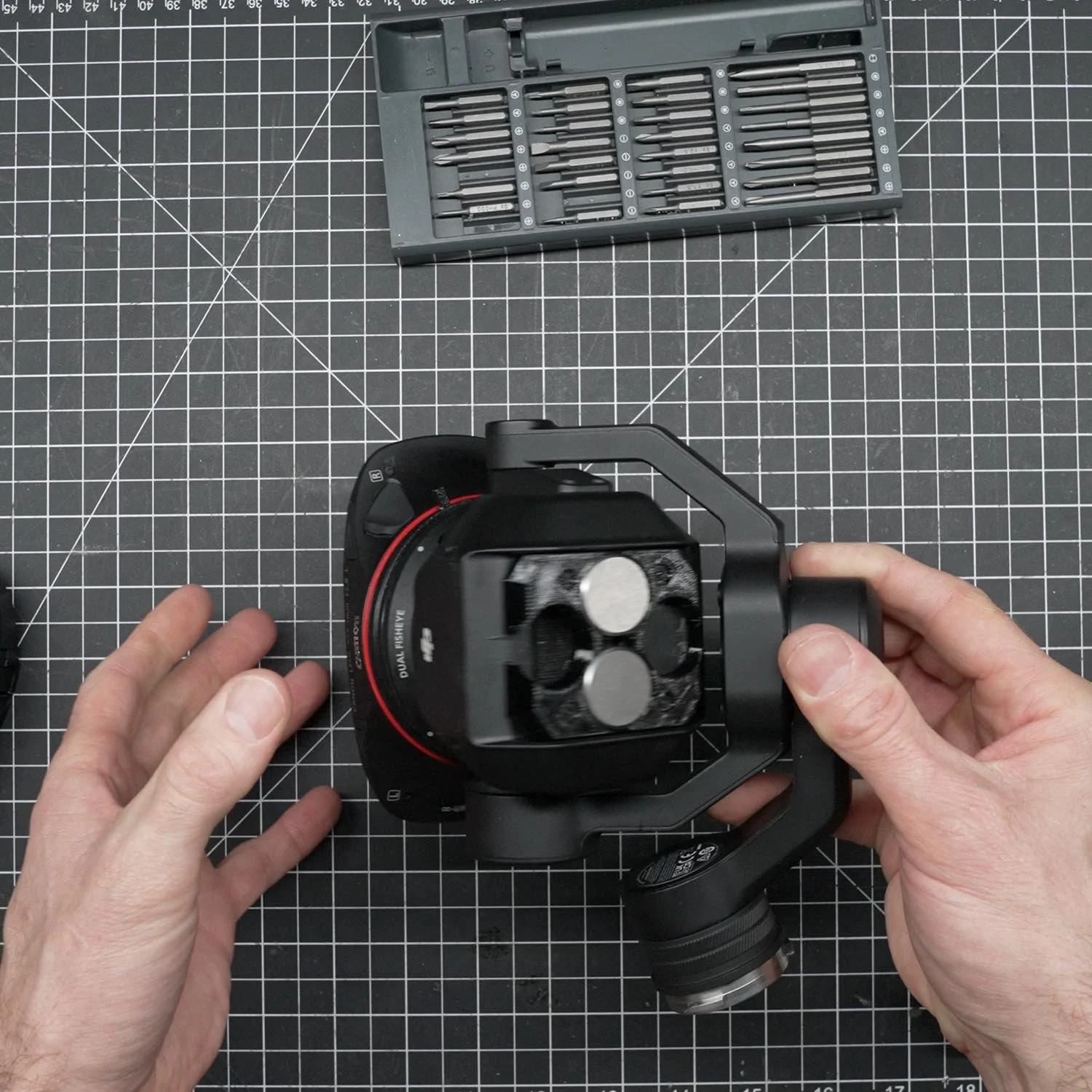

• XL counter weight for Inspire 3.

  • this lens is significantly heavier than any other lenses that work for inspire 3, and you will need the MAKE ART NOW , XL Counter weight kit, sold separately.

• You will need Micro screwdriver (electric preferred)

• Plastic Gloves

• Steady hands.

Flight Characteristics

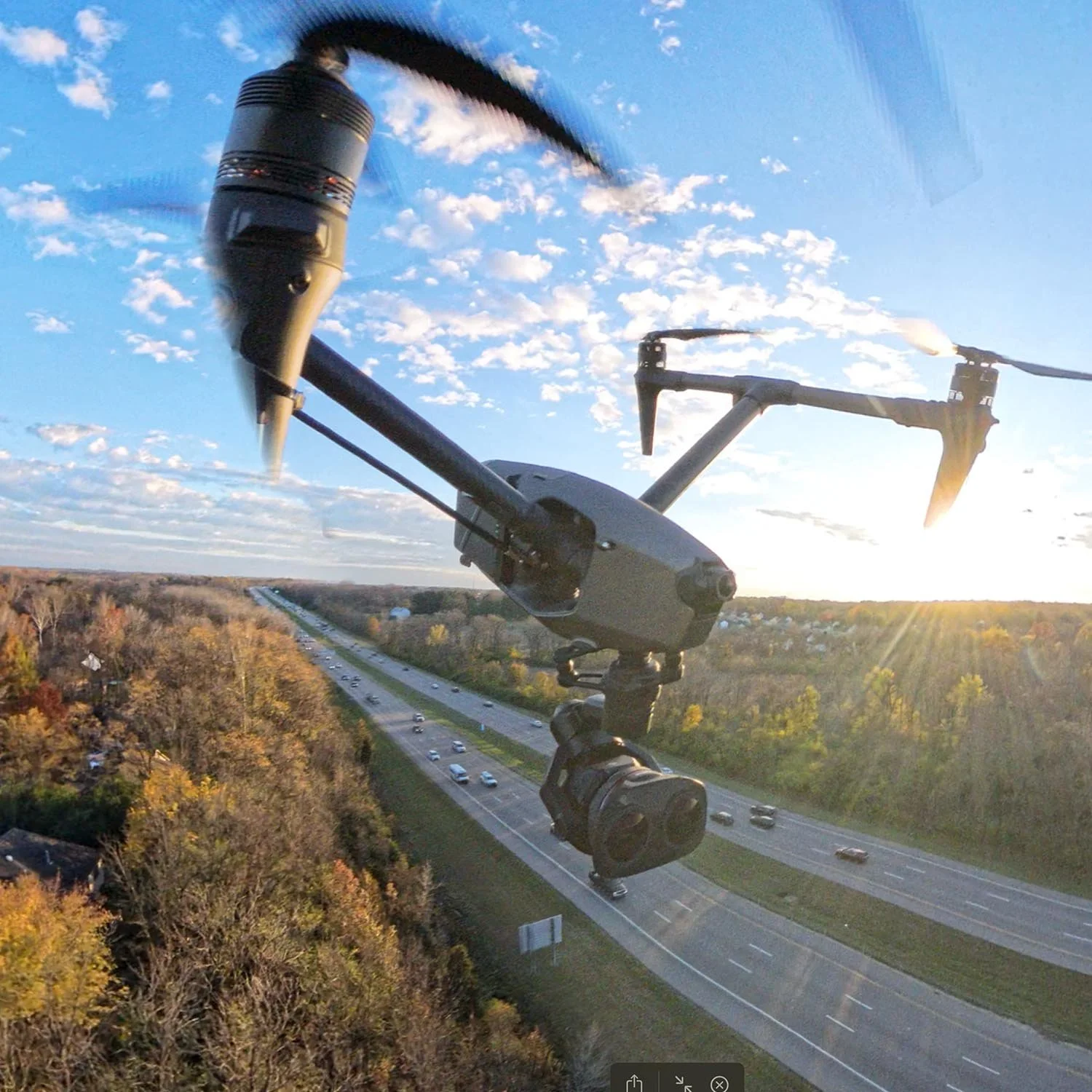

Flight characteristics are significantly modified with heavy lenses. Fly with extreme caution with this lens. Not only are you flying with more lens weight but also more counter weight. Fly very slow and avoid windy conditions or high altitudes (above 8,000ft). Some vibrations are to be expected at certain gimbal tilt angles or various climate conditions. Warmer, high altitude conditions increase propellor speed, thus increases wind vibration.

DISCLAIMER - YOU FLY AT YOUR OWN RISK

The DJI inspire 3 is designed to fly compact lenses that are 169g, and flying heavier and bigger lenses will change flight and gimbal characteristics. By purchasing this adapter you accept the risk of personal injury, death and or destruction of property due to the changes to the flight characteristics. This sale makes no guarantee that the lenses the adapter is intended for will work with full functionality, mobility, and aerodynamics. Be smart, fly slow, make a test flight first, YOU FLY AT YOUR OWN RISK.
